Tryckreducerande regulator HP

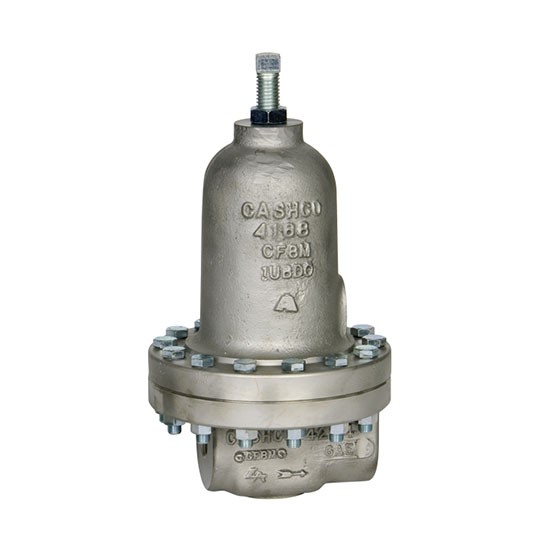

The Model “HP” is a heavy duty, high pressure reducing regulator with balanced trim and a composition seat for controlling downstream pressure between 10–750 psig (.69 – 51.7 Barg) with inlet pressures up to 3000 psig (206 Barg). A metal seated version is also available. Where trim wear is expected, metal seating surfaces may be stellited. Sizes 1/2”–1-1/2” (DN15–40). Available options include differential construction, flanged end connections and NACE construction.



Teknisk spec

  • 1/2"-1.5"
  • Cast bronze,cast stainless steel
  • 3000 PSIG
  • Female NPT,tapered thread female,flanged,extended-nipples
Dokument Ingress Filtyp Storlek
Data Sheet Cashco HP English
4,37 MB Ladda hem
IOM Cashco HP English
2,62 MB Ladda hem

Få ett kostnadsförslag

Vi skicka gärna ett kostnadsförslag på denna produkt åt dig. Fyll i formuläret så återkommer vi till dig så snart som möjligt.
