Tryckreducerande regulator 345

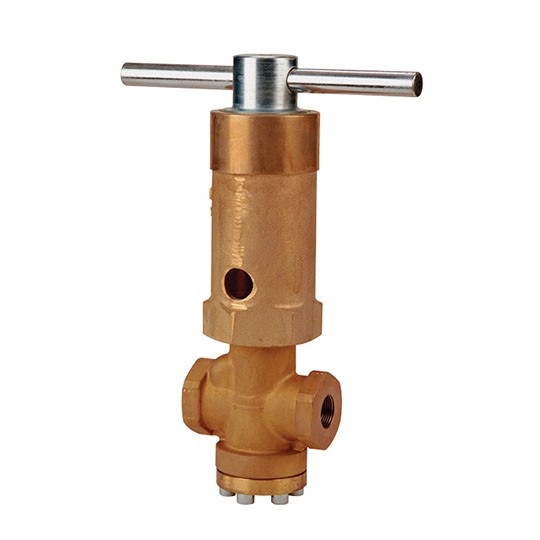

The Model 345 is a piston style, heavy duty, high pressure reducing regulator that can include balanced trim with a TFE or nylon seat for controlling down stream pressure between 50 and 3000 psig (3.4 and 207 Barg), with inlet pressures up to 4000 psig (275 Barg). The metal seated version is an unbalanced trim design. Where trim wear is expected, metal seating surfaces may be stellited. Sizes 1/2″, 3/4″ and 1″ (DN15, 20, and 25). Available options include flanged end connections.


Produktinformation
Teknisk spec
- 1/2"-1.0"
- Cast bronze,cast stainless steel
- 4000 PSIG
- Female NPT,flanged
Dokument | Ingress | Filtyp | Storlek | |
---|---|---|---|---|
Data sheet Cashco 345 | English | ![]() |
2,60 MB | |
IOM Cashco 345 | English | ![]() |
2,21 MB |
