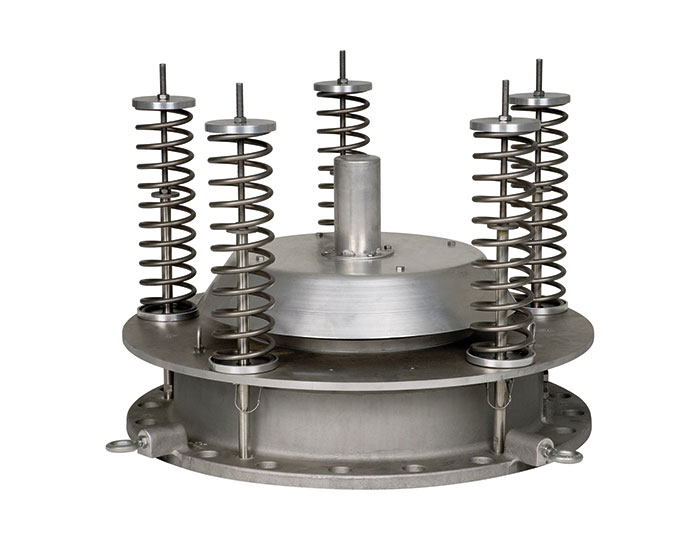

Emergency relief vents

Emergency relief vents are used on storage tanks to allow for emergency release due to fire in the vicinity of the tank. Emergency relief vents eliminate costly tank ruptures by enabling emergency release in the event of abnormal internal pressure. In the event of a fire, the weight is lifted, providing a large ventilation area.

Feel free to contact us for more information about our emergency relief valves. You can also book a meeting with one of our technical specialists and get help to find the right tank protection equipment for your process.

Ramén Valves offers a line of manway pressure and pressure/vacuum relief vents from Valve Concepts, Inc. (VCI). Unlike competitive emergency pressure relief vents that use an O-ring for sealing, 8900 Series units utilize a flat diaphragm, which has a thickness based on the vent size and customer-specified set point. As a result, it forms around the seat to provide a tighter seal and improved reliability.

How emergency relief vents work

An emergency relief vent works by opening and releasing excess pressure when it reaches a preset level. This is especially critical in process industries such as the chemical, petrochemical, and oil and gas industries, where pressure variations can be harmful to equipment and risk the safety of workers.

The vents are designed to protect systems from potential damage that can occur due to excess pressure, and they work by directing excess gas or liquid away from the system. Emergency relief vents are also used in other applications, such as heat exchanger plants, steam boilers and compressed air applications.

Our emergency relief vents

Ramén Valves distributes a line of manway pressure and pressure/vacuum relief vents from Valve Concepts, Inc. (VCI). A few of them are described here. For more information, please contact us.

Emergency relief vent 3700

The Model 3700 manhole and emergency pressure vent provide emergency pressure relief beyond that furnished by the normal pressure vent for atmospheric and low pressure tanks, as well as providing a convenient access for tank cleaning, inspection and repair. Emergency relief valves provide relief from excessive internal pressure which may be caused by an abnormal condition, such as ruptured internal heating coils or an external fire. The Model 3700 does not provide vacuum relief and therefore vacuum relief must be supplied by the normal operating vent.

Read more in the product data sheet.

Emergency relief vent 8700

The Model 8700 emergency pressure/vacuum vent provide emergency pressure and vacuum relief beyond that furnished by the normal pressure vent for atmospheric and low pressure tanks, as well as providing a convenient access for tank cleaning, inspection and repair. Emergency relief valves provide relief from excessive internal pressure which may be caused by an abnormal condition, such as ruptured internal heating coils or an external fire. The vacuum relief allows the intake of air necessary to maintain the tank pressure within the permissible vacuum limit to avoid damage to the tank.

Read more in the product data sheet.

Emergency relief vent 8900

The 8900 Series manway pressure and pressure / vacuum relief vent provide emergency pressure relief beyond that furnished by the normal pressure vent for atmospheric and low-pressure tanks, as well as a convenient access for tank cleaning, inspection and repair. Emergency relief vents provide relief from excessive internal pressure which may be caused by an abnormal condition, such as ruptured internal heating coils, an external fire, a failure of the tank blanketing system, a sudden cooling of the tank or a break in the tank wall.

Read more in the product data sheet.
Read more inte the product IOM.

Unlike competitive emergency pressure relief vents that use an O-ring for sealing, 8900 Series units utilize a flat diaphragm, which has a thickness based on the vent size and customer-specified set point. As a result, it forms around the seat to provide a tighter seal and improved reliability.
